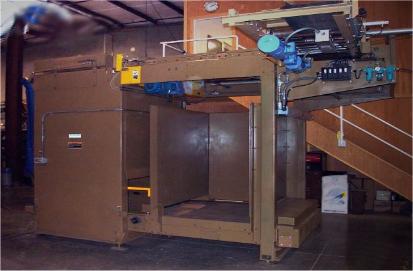

--- MDM High Speed Refurbished Palletizer ---

Components: Motors: Demag/baldor Gearboxes: Baldor Bearings: Sealmaster Limit switches: Sqr.-D Photocells: AB 9000 Airvalves: Mac Air cylinders:  Aro Plc cntrl: AB Slc 500

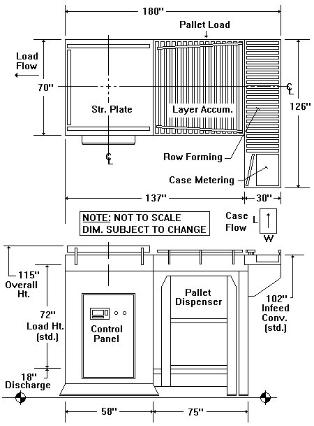

Electrical: 60amp @ 230 / 30amp @ 460 Pneumatic: 6 cfm @ 80 p.s.i. Max case size: 20"L x 14"W x 15"H std. Max load size: 50"L x 50"W x 72"H std. Max pallet size: 48"L x 48"W Max load weight: 4000 lbs. Infeed Height :100" Discharge height: 18"

OPTIONS

RETURN

SPECIFICATIONS

Woodland MDM 1229 East Kentucky Ave. Woodland, CA Ph. 530.669.1400 Fax 530.669.1413

Machine Design & Manufacturing

SINCE 1975

Cases enter the palletizer's infeed where they are metered in by a belt
conveyor. Then cases are formed into a row for the case sweep to
push onto the accumulation conveyor . When a completed layer has
been formed, it is placed onto the stripper plate. The stripper plate is
pulled back to place the layer onto the elevator. After a stack has been
completed, it is lowered and exits the machine. Once a stack has
exited the machine, a new pallet is placed on the elevator and returned
to the top to repeat the stacking cycle.
