--- MDM Low Speed Refurbished Palletizer ---

Components:
Motors: Demag/baldor
Gearboxes: Baldor
Bearings: Sealmaster
Limit switches: Sqr.-D
Photocells: AB 9000
Airvalves: Mac
Air cylinders: Aro
Plc cntrl: AB Slc 500

Electrical: 60amp @ 230 / 30amp @ 460
Pneumatic: 6 cfm @ 80 p.s.i.

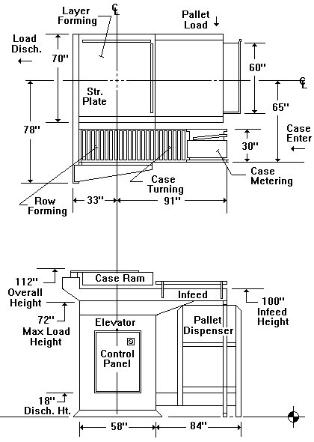

Max case size: 20"L x 14"W x 15"H std.
Max load size: 50"L x 50"W x 72"H std.
Max pallet size: 48"L x 48"W
Max load weight: 4000 lbs.
Infeed Height :100"
Discharge height: 18"

OPTIONS

RETURN

SPECIFICATIONS

Woodland MDM 1229 East Kentucky Ave. Woodland, CA Ph. 530.669.1400 Fax 530.669.1413

Machine Design & Manufacturing

SINCE 1975

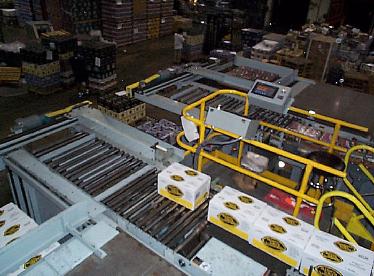

Cases enter the palletizer's infeed where they are metered in
by a belt conveyor. Then cases are formed into a row for the
case ram to push onto the stripper plate . When a complete
layer has been formed, the stripper plate is pulled back to place
the layer onto the elevator. After a stack has been completed, it
is lowered and exits the machine. Once a stack has exited the
machine, a new pallet is placed on the elevator and returned to
the top to repeat the stacking cycle.
